Description

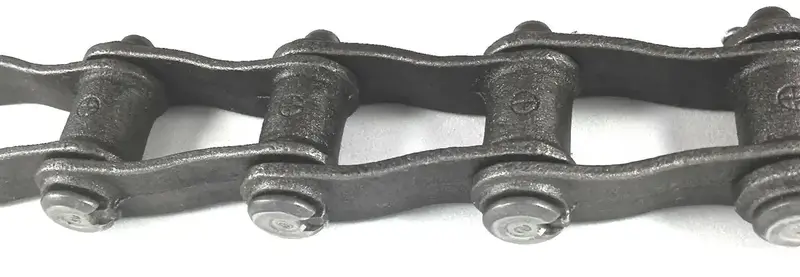

442 Pintle Chain
442 pintle chain is a light weight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. This 442 pintle chain is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. 442 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and waste water applications. Additionally, we offer a full line of 442 pintle chain attachments and 442 sprockets. To get a quote please contact us and we will be happy to assist you.
Dimensions:
- Chain Size: 442 Pintle Chain
- Pitch: 1.375″
- Links Per 10ft: 88
- Weight Per Foot: 1.40 LBS
- Average Ultimate Strength: 7,800 LBS
- Maximum Recommended Working Load: 1,000 LBS
- Maximum Allowable Sprocket Face (A): 0.62″
- Overall Width Cottered (C): 2.03″
- Overall Width Riveted: 1.88″
- Pin Diameter (E): 0.31″
- Sidebar Height (F): 0.75″
- Barrel Diameter (H): 0.56″
- Head of Pin to Center Line (J): 0.97″
- End of Pin To Center Line Cottered (K): 1.06″
- End of Pin To Center Line Riveted (L): 0.91″
- Length of Bearing (X): 1.06″
