Description
Features:
- Quad 1×10 Multiplexer for 2-, 4-, or 8-Pole Operation
- Connects to 7001 / 7002 Backplane for Easy Expandability
- 500nV, 100pA Offsets

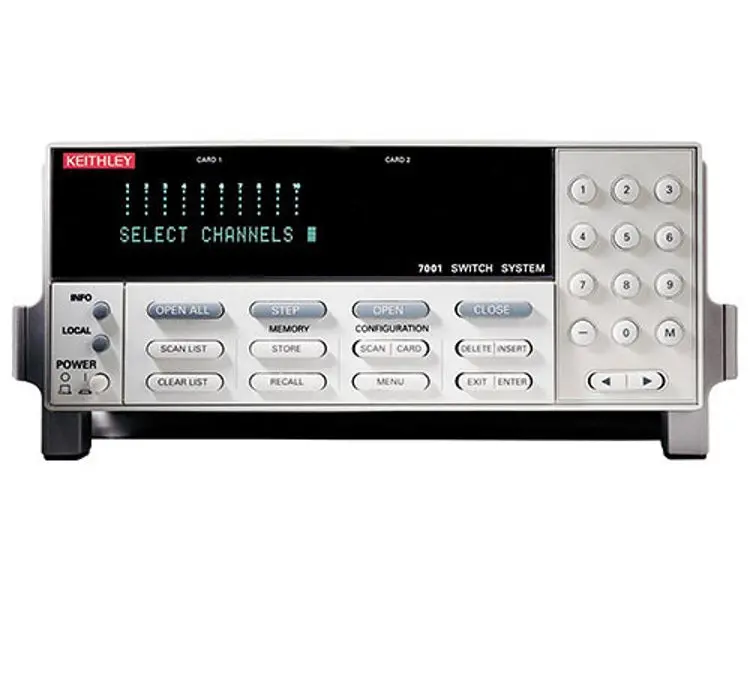

The Keithley 7011-C / 7011-S / 7111-S Series 40-Channel Multiplexer Cards has four independent banks of 1×10 switching. Each channel is 2-pole. These four banks can be combined for a wide variety of switching configurations-for example, dual 1×20, or 1×10 and 1×30, or one large 1×40. The 7001 mainframe can automatically configure the 7011 to switch 4-pole signals by combining channel pairs. This gives you a dual 1×10 4-pole multiplexer or a single 1×20 4-pole multiplexer.
Each of the four multiplexer outputs on this card connects to the 7001/7002 analog backplane through removable jumpers for even greater flexibility. Two 7011 cards can be used to make a single 1×80 multiplexer with all intercard connections through the backplane. The 7011 multiplexer outputs can also be connected to the rows of the 7012 via the backplane for row expansion.
The Model 7111-S is a form C version of the 7011-S. The 7111-S is a low voltage, quad 1×10, single-pole form C multiplexer card. The 7111-S assembly consists of a screw terminal connector card and a relay card. External test circuits are wired directly to the screw terminals of the connector card.
These cards will automatically configure the 7001 or 7002 mainframe. Two factory connection options are available, screw terminal for maximum flexibility or a single 96-pin quick disconnect connector.
